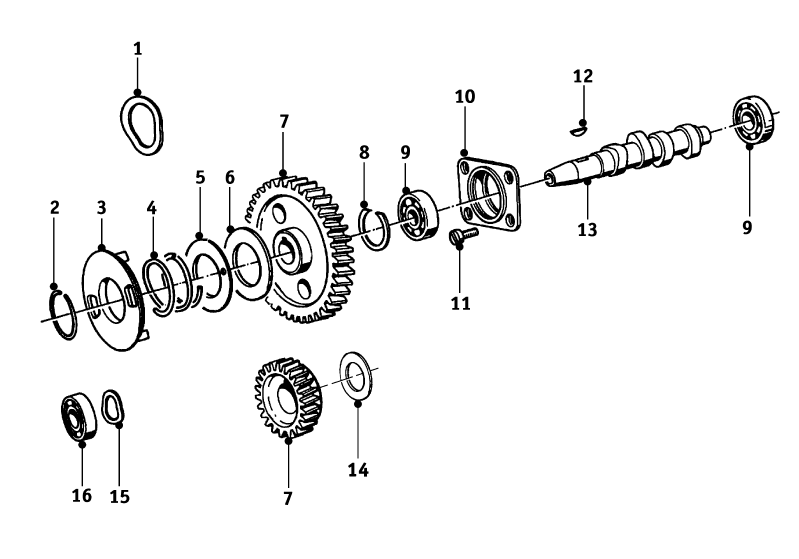

| No. |
Part nr. |
Description |
Add info. |
Qty. |
| 1 |
11310031707 |
Wave spring |
only i.c.w. "new" 30° camshaft gear |
1 |
| 2 |
07119933451 |
Snap ring 35mm |
only i.c.w. "old" 20° camshaft gear |
1 |
| 3 |
11150031171 |
Breather plate - 2 cast pins |
only i.c.w. "new" 30° camshaft gear |
1 |
| 4 |
11150031152 |
Spring |
only i.c.w. "old" 20° camshaft gear |
1 |
| 5 |
11150031164 |
Cover plate (for 1 pin breather plate) |
R50, R60, R69 |
1 |
| 6 |
23211231658 |
Shim 1.0 mm (for 2 cast pin breather plate) |
R50/2, R50S, R60/2, R69S |
1 |
| 7 |
11310016399 |
Gear set +10 |
|
1 |
|
11310016398 |
Gear set +9 |
|
1 |
|
11310016397 |
Gear set +8 |
|
1 |
|
11310016396 |
Gear set +7 |
|
1 |
|
11310016395 |
Gear set +6 |
|
1 |
|
11310016394 |
Gear set +5 |
|
1 |
|
11310016393 |
Gear set +4 |
|
1 |
|
11310016392 |
Gear set +3 |
|
1 |
|
11310016391 |
Gear set +2 |
|
1 |
|
11310016390 |
Gear set +1 |
|
1 |
|
11310016389 |
Gear set +0 |
|
1 |
|
11310016388 |
Gear set -1 |
|
1 |
|
11310016387 |
Gear set -2 |
|
1 |
|
11310016386 |
Gear set -3 |
|
1 |
|
11310016385 |
Gear set -4 |
|
1 |
|
11310016384 |
Gear set -5 |
|
1 |
|
11310016383 |
Gear set -6 |
|
1 |
|
11310016382 |
Gear set -7 |
|
1 |
|
11310016381 |
Gear set -8 |
|
1 |
|
11310016380 |
Gear set -9 |
|
1 |
|
11310016379 |
Gear set -10 |
|
1 |
| 8 |
11310030102 |
Spring washer |
|
1 |
| 9 |
07119981213 |
Ball bearing 6203 |
|
2 |
| 10 |
11310030150 |
Bearing holder |
|
1 |
| 11 |
11300030104 |
Screw M6 x 16 |
|
4 |
| 12 |
07119951461 |
Woodruff key |
|
1 |
| 13 |
11310031027 |
Camshaft |
R50, R60 |
1 |
|
11310031028 |
Camshaft |
R50/2, R60/2 |
1 |
|
11310031029 |
Camshaft |
R69 |
1 |
|
11310031030 |
Camshaft 320° |
R50S, R69S |
1 |
|
11310031033 |
Camshaft 328° Sport |
R50S, R69S |
1 |
|
11310031032 |
Camshaft 332° / 344° Rennsport |
R50S, R69S |
1 |
| 14 |
11310016400 |
Shim 1.5 mm |
R50, R60 |
1 |
| 15 |
11310031172 |
Wave washer |
R69 |
1 |
| 16 |
07119981041 |
Ball bearing 6003 |
R69 |
1 |
