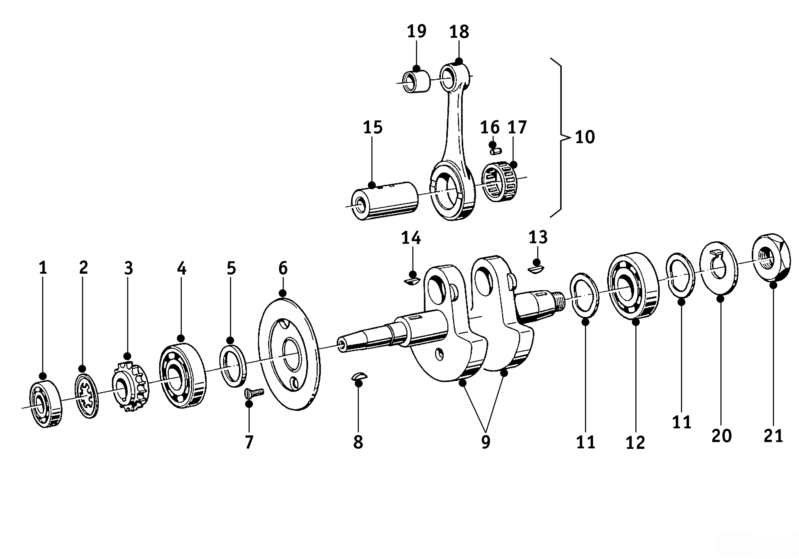

No.	Part nr.	Description	Add info.	Qty.
1	07119981219	Ball bearing	6204 C3	1
2	11210016120	Spring washer		1
x	07119934131	Circlip	A20x1.2	1
3	11210016118	Chain wheel		1
x	11210016116	Ring between sprocket and bearing	R25 - R25/3	1
4	07119981237	Ball bearing	6206	1
5	11210016114	Ring		1
6	11210016112	Oil slinger, inside Ø = 18.4 mm	R25 - R25/3	1
	11210016112B	Oil slinger, inside Ø = 17.7 mm	R25	1
7	07119900106	Countersunk screw	AM6X10	1
8	07119951454	Woodruff key		1
9,10	11210016002	Crankshaft complete		1
10	11240017002	Connecting rod set		1
11	11210016124	Spring washer		2
12	07119981237	Ball bearing	6206	1
13	07119951480	Woodruff key 5 x 6.5	R24 - R25/2	1
	11210016132	Woodruff key 5 x 4.4	R25/3	1
14	07119951440	Woodruff key	3x5	1
15	11210016108	Crankpin	32 x 54 mm tapered	1
16	11240016143	Roller for conrod	Ø 7.00 x 10 mm	12
17	11210016128	Cage		1
19	11240017102	Wrist pin bushing	18 mm	1
20	11220070118	Securing plate	R25 - R25/3	1
21	11210016122	Hex nut		1
x	20W50Millers	Engine oil - mineral based multigrade	Millers Pistoneeze 20W50	1
