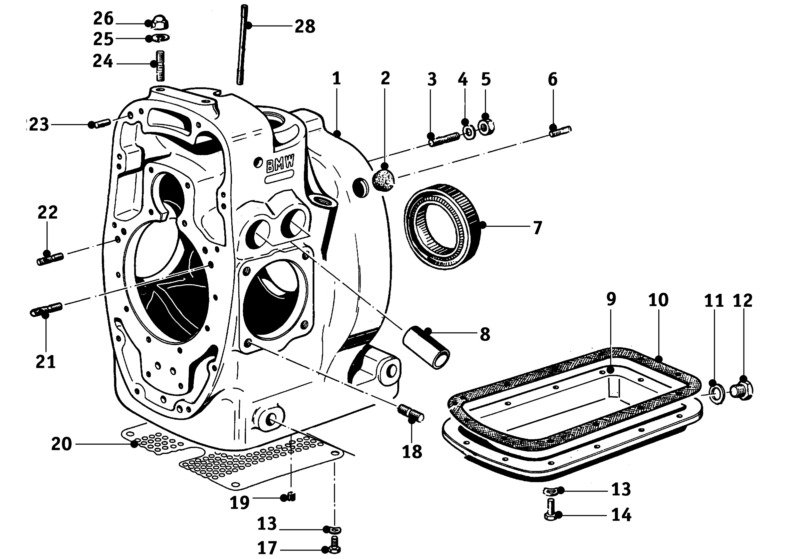

No.	Part nr.	Description	Add info.	Qty.
x	11000008414.B	Set of gaskets & seals	R50/2, R60/2	1
x	11000008414.C	Set of gaskets & seals	R50, R60	1
x	11000008413	Set of gaskets & seals	R69, R69S	1
1	11110001031	Crankcase	R50, R60	1
	11110001032	Crankcase	R50/2, R60/2, R69S	1
	11110001033	Crankcase	R69, 1955 - '60	1
2	11111744327	Plug inspection hole	black	1
	11110001106	Plug inspection hole	ivory	1
3	07119903326	Stud bolt	M8x25	3
4	07119931067	Washer	8.4 Ø	4
5	07119922081	Nut	M8	4
6	11110001184	Stud bolt bearing shield	M6x25	5
7	11110001122	Seal 52x72x10 mm		1
8	11110001188	Tappet bushing	R50, R60	4
	11110001189	Tappet bushing	R50/2 - R69S	4
9	11130007029	Oil pan		1
10	11130007156	Oil pan gasket		1
11	07119963242	Seal ring	14x18x1.5 mm	1
12	11130007163	Oil plug with magnet	M14x1.5	1
13	07119932099	Wave washer	B6 Zinc plated	12
	07119932072	Wave washer	B6 SSt	12
14	07119913463	Bolt	M6x15	12
17	07119913426	Bolt	M6x10	4
18	07119903416	Cylinder stud bolt	M10x22	8
19	11110001110	Oil channel screw plug		1
20	11110007153	Screen plate		1
21	11110001186	Stud bolt (replaced by 07119903306)	M8x18	1
22	07119903306	Stud bolt	M8x18	3
23	07119942091	Alignment pin	6x16	1
24	11110001182	Stud bolt	M8x16	2
25	07119932090	Wave washer	B8	2
	07119933095	Spring washer	B8	2
26	46625096152	Cap nut	M8	2
28	11110001180	Stud bolt	M6	1
x	11814034282	Bracket engine mount, upper		1
	Tools:
	M5108	Drift bushing for rear oil seal of crankshaft
