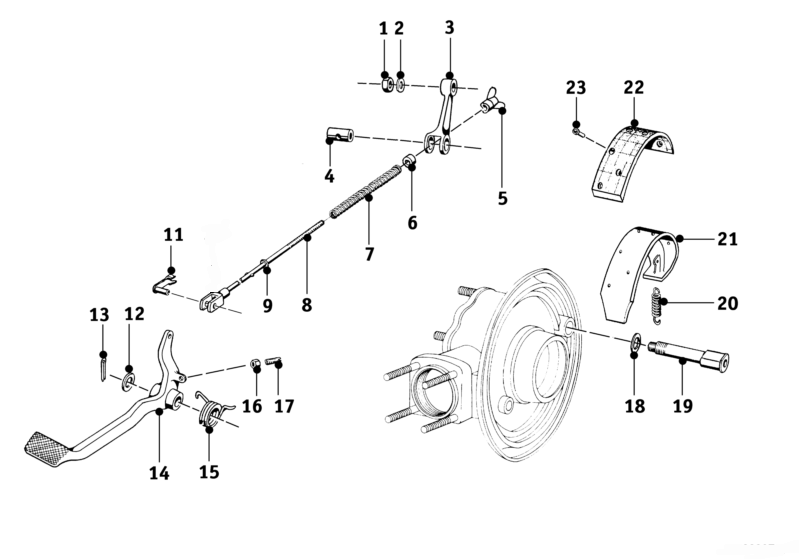

| No. | Part nr. | Description | Add info. | Qty. |
|---|---|---|---|---|
| 1 | 07119921616 | Hex nut, flat | M10x1 | 1 |
| 2 | 07119936227 | Serrated washer | J10.5 | 1 |
| 3 | 34213060113 | Brake lever | 1 | |
| 4 | 34214044141 | Bolt | Ø 14 mm | 1 |
| 5 | 34214044115 | Wing nut | 1 | |
| 6 | 34214044133 | Ring | 1 | |
| 7 | 34214044137 | Thrust spring | 1 | |
| 8 | 35214044159 | Connecting rod | 1 | |
| 9 | 07119931696 | Washer 6.4 | 1 | |
| 11 | 07129934954 | Lock pin | 1 | |
| 12 | 35214044154 | Washer | 1 | |
| 13 | 07119945211 | Split pin | 4x20 mm | 1 |
| 14 | 35214044150 | Brake foot lever | 1 | |
| 15 | 35214044127 | Brake spring | 1 | |
| 16 | 07119922059 | Hex nut | M6 | 1 |
| 17 | 07119904619 | Grub screw | M6 | 1 |
| 18 | 34213060107 | Washer | 1 | |
| 19 | 34213060102 | Brake spanner | 1 | |
| 20 | 34112060134 | Brake shoe spring | 2 | |
| 21 | 34112060103 | Brake shoe | 2 | |
| 22 | 34112060132 | Brake lining | 2 | |
| 23 | 07119949213 | Rivet | 3x10 mm | 16 |
