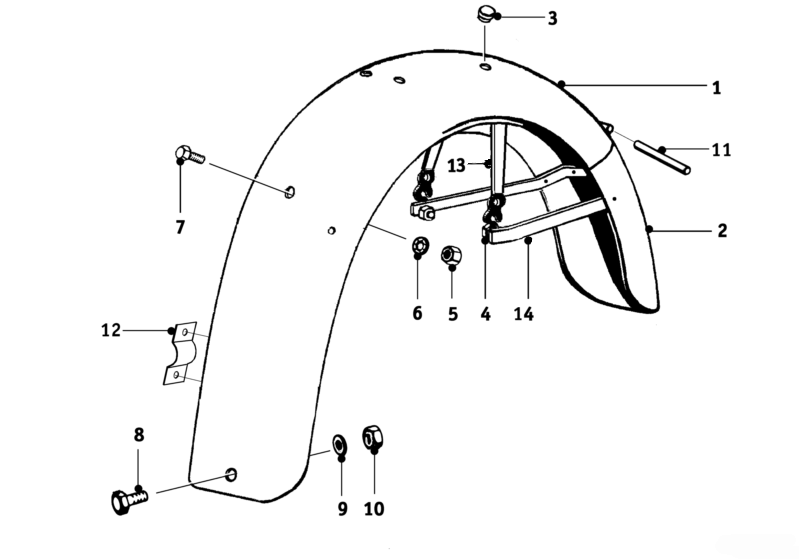

| No. | Part nr. | Description | Add info. | Qty. |
|---|---|---|---|---|
| 1 | 46625096009 | Rear fender | R25 | 1 |
| 46625096014 | Rear fender | R25/2 | 1 | |
| 46625096018 | Rear fender parts | R25/3 | 1 | |
| 46620035293 | Rear fender, primered | R25/3 | 1 | |
| 46620035294 | Rear fender, painted & coach-lined | R25/3 | 1 | |
| 2 | 46625096018.A | Rear part | R25/3 | 1 |
| 3 | 61715096154 | Blind plug | 4 | |
| 4 | 46625096122 | Stepped nut | M8, SW14 | 2 |
| 5 | 07119921606 | Flat hex nut | M8x1 | 1 |
| 6 | 07119936206 | Serrated washer | J8.4 | 1 |
| 7 | 07119914005 | Hex bolt | M8x1x15 | 1 |
| 8 | 07119914005 | Hex bolt | M8x1x15 | 1 |
| 11 | 46625096118 | Hinge pin | 1 | |
| 46625096014 | Hinge in rear fender (5 lips) | R25/2 | 1 | |
| 46625096034 | Hinge in rear fender (3 lips) | R25/3 | 1 | |
| 12 | 46625096164 | Cover piece | 1 | |
| 13 | 46625096018.L | Strut LH, fender to frame | R25/3 | 1 |
| 46625096018.R | Strut RH, fender to frame | R25/3 | 1 | |
| 14 | 46625096018.M | Strut LH, to rear fender | R25/3 | 1 |
| 46625096018.N | Strut RH, to rear fender | R25/3 | 1 |
