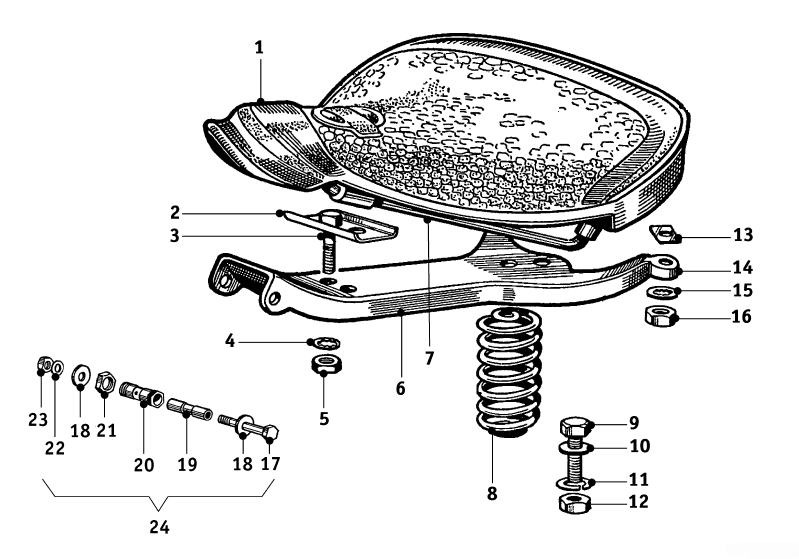

| No. | Part nr. | Description | Add info. | Qty. |
|---|---|---|---|---|
| 1 | 52517002004 | Saddle deck Pagusa | without frame | 1 |
| 4 | 07119936206 | Serrated washer | J8.4 | 2 |
| 6 | 52517002113 | Saddle frame | 1 | |
| 7 | 52510009991 | Saddle deck + frame | 1 | |
| 8 | 52517002109 | Saddle spring | 1 | |
| 9 | 52517002117 | T-bolt | M10 x 1 | 2 |
| 10 | 07119931077 | Flat washer | Ø 10.5 mm | 2 |
| 11 | 07119933110 | Spring washer | B10 | 2 |
| 12 | 07119922121 | Hex nut | M10x1 | 2 |
| 15 | 07119936206 | Serrated washer | J8.4 | 2 |
| 16 | 07119922081 | Hex nut | M8x1.25 | 2 |
| 17 | 07119914089 | Hex bolt | M8x1x68 | 1 |
| 18 | 52517002133 | Washer | Ø 8.4 | 2 |
| 19-21 | 52517002125 | Saddle bearing bolt | 1 | |
| 22 | 07119932090 | Spring washer | B8 | 1 |
| 23 | 07119922094 | Hex nut | M8x1 SW14 | 1 |
