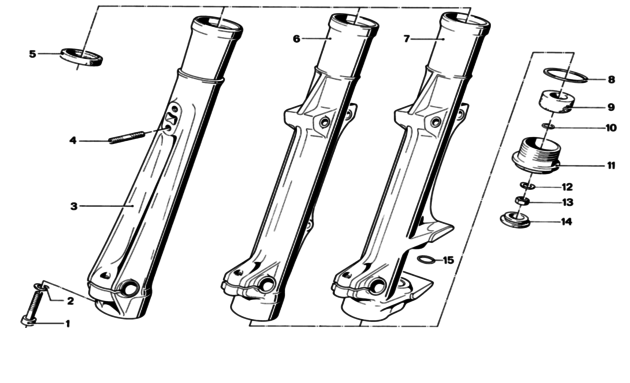

No. | Part nr. | Description | Add info. | Qty. |
---|---|---|---|---|
1 | 07119901027 | Fillister head screw | M8X35 | 1 |
2 | 07119932090 | Wave washer | B8 | 1 |
3 | 31422000377 | Fork sliding tube - left | 1 | |
3 | 31422000378 | Fork sliding tube - right | 1 | |
4 | 07119903326 | Stud bolt | M8 x 25 | 4 |
5 | 31421230001 | Seal ring, telescopic fork | 2 | |
8 | 31421232426 | Seal bottom fork cap | 2 | |
9 | 31421230751 | Stop ring front fork | 2 | |
10 | 07119963041 | Seal ring | A8 x 11.5 | 2 |
11 | 31422000380 | Bottom screw, telescopic fork | 2 | |
12 | 07119932090 | Wave washer | B8 | 2 |
13 | 07119922093 | Hex nut | M8 x 1 SW13 | 2 |
14 | 31422000381 | PIug cap | 2 |
