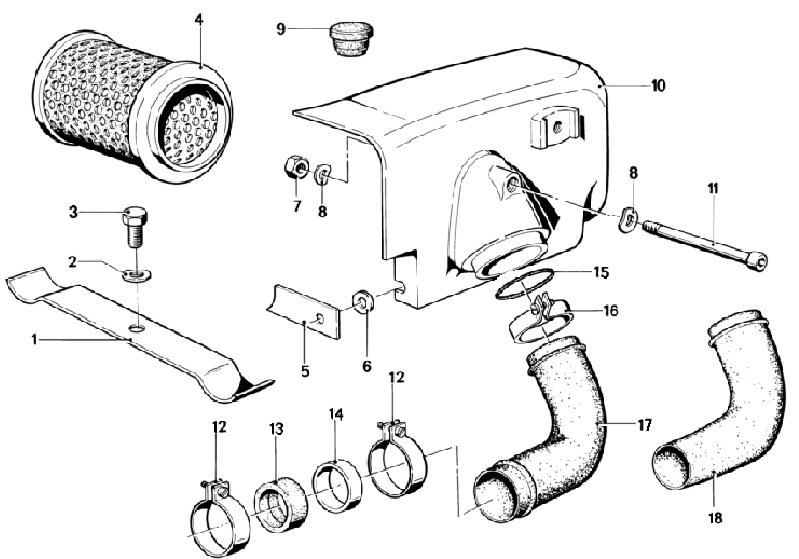

No. |
Part nr. |
Description |
Add info. |
Qty. |
1 |
13721251169 |
Clamping spring |
R50/5 - R100RS <1981 |
1 |
2 |
07119932090 |
Wave washer B8 |
|
1 |
3 |
07119913627 |
Hex bolt M8x20 |
|
1 |
4 |
13721254382 |
Air filter element LX194 |
R50/5 - R100RT <1981 |
1 |
5 |
13721335977 |
Clamping spring |
R50/5 - R100RT <1981 |
1 |
6 |
34213060174 |
Spacer |
R50/5 - R100RT <1981 |
1 |
7 |
07119922059 |
Hex nut M6 |
|
1 |
8 |
07119932072 |
Wave washer B6 |
|
1 |
9 |
41355780222 |
Plug |
|
1 |
10 |
13721253717 |
Air cleaner housing, left |
R50/5 - R100RS <09-1980 |
1 |
|
13721253720 |
Air cleaner housing, right |
R50/5 - R100RS <09-1980 |
1 |
|
13721335690 |
Air cleaner housing, left |
R90S |
1 |
|
13721335691 |
Air cleaner housing, right |
R90S |
1 |
11 |
13721254042 |
Screw |
R50/5 - R100RS <09-1980 |
1 |
12 |
07129952123 |
Hose clamp L=53-60 mm) |
R75/5 - R100RS |
4 |
13 |
13721259820 |
Rubber grommet |
R90S |
2 |
14 |
13721260342 |
Ring |
R90S |
2 |
15 |
13721257763 |
Gasket ring |
R75/5 - R100RS (32 mm carb) |
2 |
16 |
07129952121 |
Hose clamp L=47-54 mm |
R50/5 - R100RS (32 mm carb) |
2 |
17 |
13721251611 |
Suction funnel, left |
R50/5 - R60/7 |
1 |
|
13721251612 |
Suction funnel, right |
R50/5 - R60/7 |
1 |
18 |
13721258059 |
Suction funnel, left |
R75/5 - R100RT |
1 |
|
13721258060 |
Suction funnel, right |
R75/5 - R100RT |
1 |
