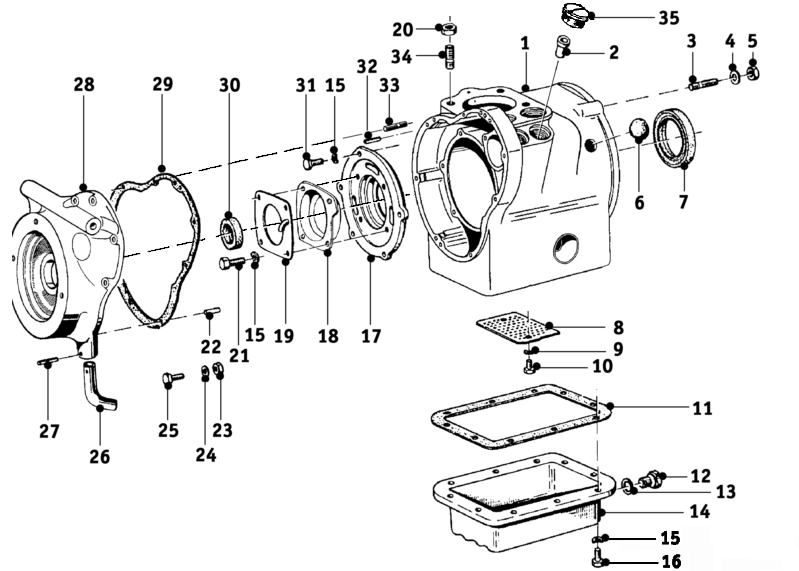

No. Part nr. Description Add info. Qty.
1 Crankcase R26 1
2 Bearing bushing for oil pump 1
3 Stud M8x30 4
4 Flat washer Ø 8.4 mm - SSt 2
5 Hex nut M8 4
6 Plug for timing inspection hole ivory 1
Plug for timing inspection hole black 1
7 Crankshaft rear oil seal, Viton® 52x72x10 1
8 Screen plate 1
9 Wave washer B6 2
10 Hex head screw M6x8 2
11 Oil pan gasket 1
12 Plug screw M14x1.5 1
Plug screw with magnet M14x1.5 1
Plug screw with magnet M16x1.5 1
13 Seal ring 14x18x1.5 mm 1
14 Oil pan 1
15 Wave washer B6 19
16 Hex bolt M6x15 14
17 Bearing cover 1
18
19 Flange for bearing cover 1
20 Hex nut M10, 14mm wrench 4
21 Hex bolt M6x15 4
22 Straight pin 6x14 1
23 Hex nut M6 4
24 Flat washer Ø 6.4 8
25 Hex head screw M6x25 4
26 Crankcase vent tube 1
27 Grooved pin 2x20 1
28 Chain cover 1
29 Gasket 1
30 Seal ring 1
31 Hex head screw M6x18 5
32 Stud bolt M6x20 3
33 Stud bolt M6x25 2
34 Stud bolt for cylinder M10x22 4
35 Oil pump cover 1
x Gasket & seal set 1
x Engine oil - mineral based multigrade Millers Pistoneeze 20W50 1
