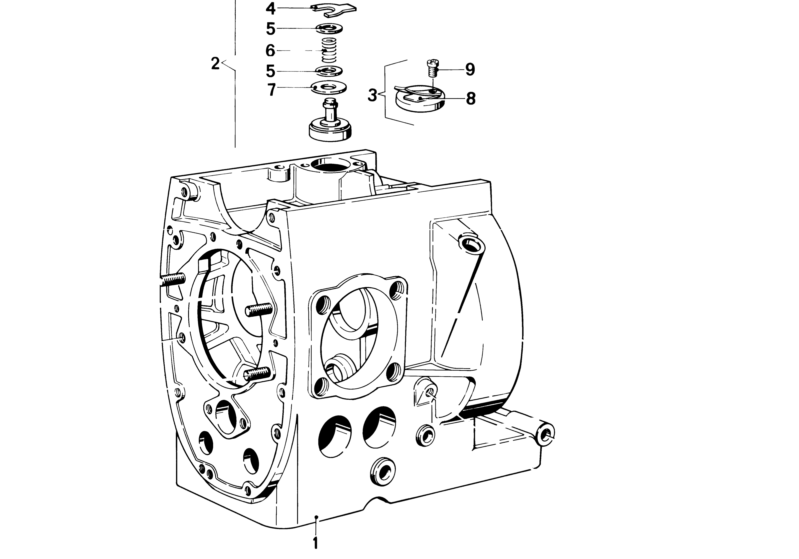

No. | Part nr. | Description | Add info. | Qty. |
---|---|---|---|---|
1 | 11111338055 | Engine housing | R50/5 - R90S <09-1975 | 1 |
11111336306 | Engine housing | R75/6 - R100RT >09-1975 | 1 | |
2 | ||||
3 | 11111335712 | non-return valve set | R50/5 - R100R | 1 |
11111251224 | non-return valve set | replaced by 11111335712 | 1 | |
4 | 07129934312 | Lock ring | D5.0 | 1 |
5 | 07119931029 | Washer | Ø 5.3mm | 2 |
07119931033.1 | Washer | Ø 5.2mm | 2 | |
6 | 11111251228 | Compression ring | 1 | |
7 | 11111251229 | Valve plate | 1 | |
8 | 11111335711 | Diaphragm | 1 | |
9 | 07119907602 | Fillester head screw | M3x8 | 1 |
