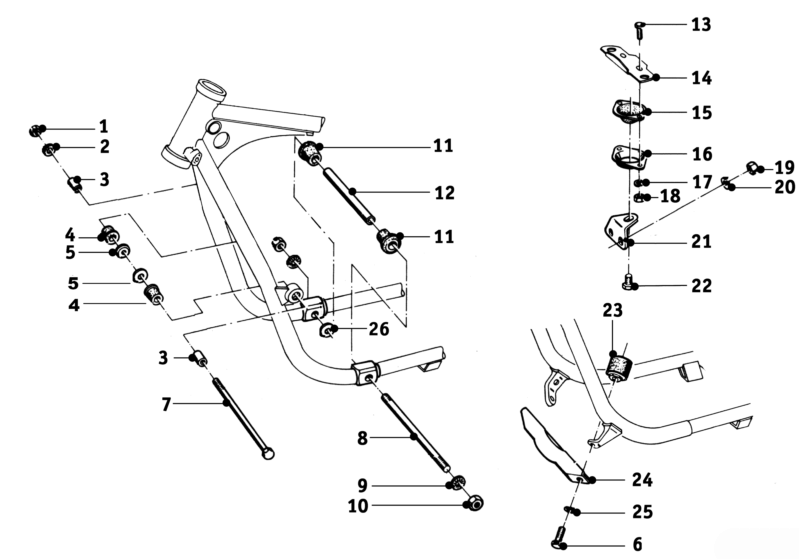

| No. |
Part nr. |
Description |
Add info. |
Qty. |
| 1 |
07119922121 |
Hex nut |
R26, M10x1 |
2 |
| 2 |
07119933110 |
Spring washer |
B10 |
2/1 |
| 3 |
11814034162 |
Spacer tube |
R26 |
2 |
| 4 |
11814034166 |
Rubber bushing |
R26 |
2 |
| 5 |
11814034170 |
Washer |
R26 |
2 |
| 6 |
07119911628 |
Hex bolt |
R27, M10x1x18 |
2 |
| 7 |
11814034174 |
Upper engine bolt |
R26 |
1 |
| 8 |
11814034115 |
Lower engine bolt |
R26 |
1 |
| 9 |
07119936246 |
Serrated washer |
J12.5 |
2 |
| 10 |
07119922147 |
Hex nut |
M12x1.5 |
4 |
| 11 |
11814034119 |
Rubber bushing |
R26 |
2 |
| 12 |
11814034123 |
Spacer tube |
R26 |
1 |
| 13 |
07119913463 |
Hex bolt |
M6x16 |
2 |
| 14 |
16114080197 |
Fuel tank carrier |
R27 |
1 |
| 15 |
11814034130 |
Silent block |
R27 |
1 |
| 16 |
11814034120 |
Limit stop ring |
R27 |
1 |
| 17 |
07119932072 |
Lock washer |
R27, B6 |
2 |
| 18 |
07119922059 |
Hex nut |
R27, M6 |
2 |
| 19 |
07119922081 |
Hex nut |
R27, M8 |
2 |
| 20 |
07119932090 |
Wave washer |
R27, B8 |
2 |
|
07119933095 |
Spring washer |
R27, B8 |
2 |
| 21 |
11814034126 |
Upper mount bracket |
R27 |
1 |
| 22 |
07119913812 |
Hex head screw |
R27, M10x15 |
1 |
| 23 |
23714034131 |
Rubber mounting |
R27 |
2 |
| 24 |
11814034132 |
Bridge |
R27 |
1 |
| 25 |
07119933108 |
Lock washer |
B10 |
2/1 |
| 26 |
11814034117 |
Engine spacer |
<> R26, R27 |
2 |
| x |
11814034134 |
Motor vibration damper bolt, incl. rubber |
R27 |
1 |
