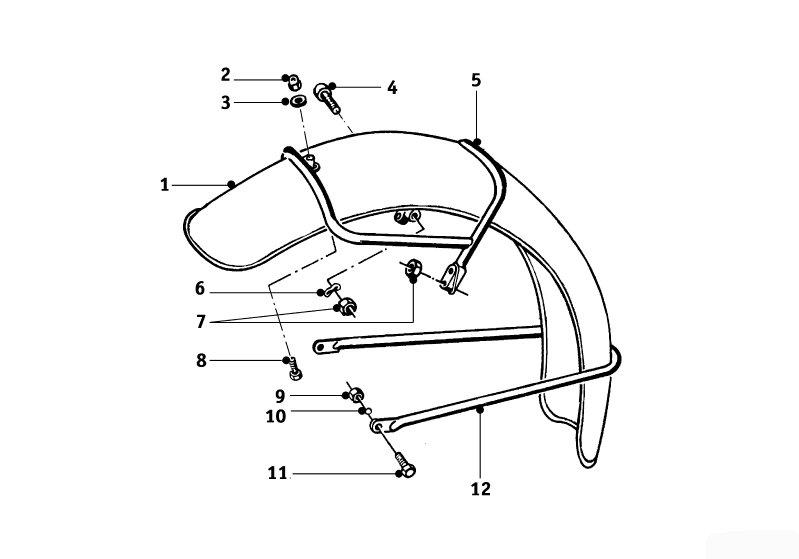

| No. | Part nr. | Description | Add info. | Qty. |
|---|---|---|---|---|
| 1 | 46615090050 | Front fender | 1 | |
| 2 | 07119924324 | Cap nut | M6 | 6 |
| 3 | 07119931043 | Washer | 6.4 | 6 |
| 4 | 46615090154 | Internal hex screw | 1 | |
| 5 | 46615090150 | Upper bow | 1 | |
| 6 | 07119932090 | Spring washer | B8 | 1 |
| 7 | 07119922428 | Hex nut | M8 | 1 |
| 8 | 07119913445 | Hex head screw | M6x12 | 6 |
| 9 | 07119922059 | Hex nut | M6 | 2 |
| 10 | 07119932099 | Spring washer | B6 | 2 |
| 11 | 07119913470 | Hex head screw | M6x18 | 2 |
| 12 | 46615090151 | Lower bow | 1 | |
| x | 07119931067 | Washer | 8.4 | 4 |
