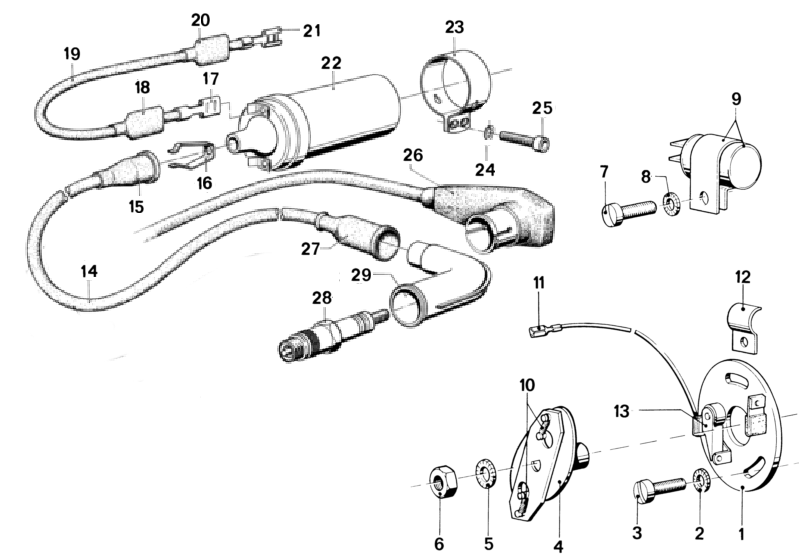

No. | Part nr. | Description | Add info. | Qty. |
---|---|---|---|---|
1 | 12111353640 | Contact breaker plate | 2 | |
2 | 07119932030 | Wave washer B6 | 2 | |
3 | 07119919752 | Fillester head screw M4x10 | 2 | |
12111361964 | Screw M4x6 | 2 | ||
4 | 12111356286 | Centrifugal governer | R50/5 - R75/6 <1976 | 1 |
12111357626 | Centrifugal governer | R60/6 - R100RS >1976 | 1 | |
5 | 07119932072 | Wave washer B6 | 1 | |
6 | 07119922059 | Hex nut M6x1 | 1 | |
7 | 07119919380 | Cylinder screw M4x12 | 1 | |
8 | 07119933035 | Wave washer B4 | 1 | |
9 | 12111351564 | Capacitor | <09-1978 | 1 |
10 | 12111356546 | Tension spring | R50/5 - R75/6 <1976 | 2 |
12111357627 | Tension spring | R60/6 - R100RS >1976 | 2 | |
11 | 61138061769 | Cable socket B=7 L=19.2 mm | 1 | |
12 | 12111353345 | Clamp 1x4 | 1 | |
13 | 12111243555 | Contact breaker | 1 | |
14 | 12128036124 | Ignition wire | 2 | |
12128036124.7 | Ignition wire, with cable sleeves | 2 | ||
15 | 12118536129 | Protection cap | cable to coil | 2 |
16 | 12128536120 | Cable sleeve | 2 | |
17 | 61138061769 | Cable socket B=7.5 L=19.2 mm | 2 | |
18 | 61138061761 | Cover cap | /6 series | |
19 | 12131354147 | Wire | 2 | |
20 | 61138061761 | Cover cap | /6 series | 2 |
21 | 61138061769 | Cable socket B=7.5 L=19.2 mm | 2 | |
22 | 12131243452 | Ignition coil | Ø 55 mm | 2 |
23 | 12138031705 | Clamp | 2 | |
24 | 07119932099 | Wave washer B6 | 4 | |
25 | 07119920148 | Fillester head scew M6x12 | 4 | |
26 | 12121243182 | Ignition wire with spark plug cap | 2 | |
27 | 12128036160 | Protection cap | 2 | |
28 | 12121338146 | Spark plug Bosch W5DC, BP7ES | R50/5, R60/5/6/7, R90S | 2 |
12121338145 | Spark plug Bosch W6DC, BP6ES | R75/5 - R100/7 | 2 | |
29 | 12128036157 | Spark plug socket | BERU - 1 KΩ resistor | 2 |
