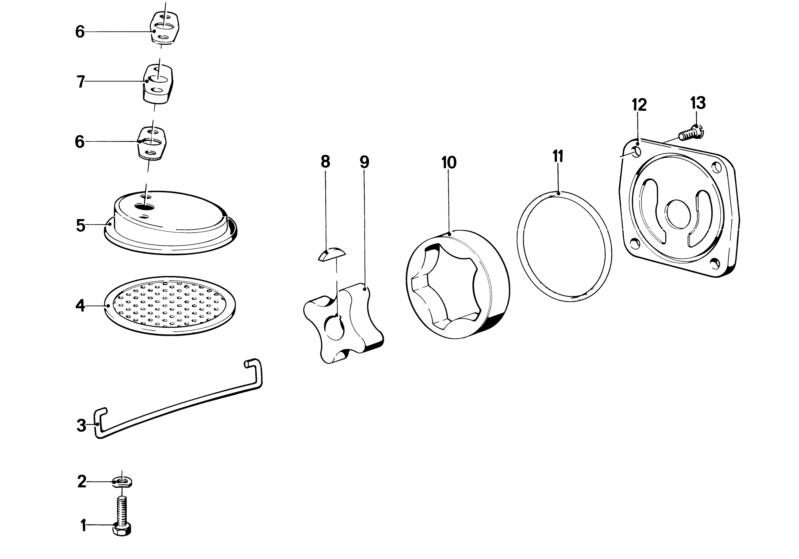

No. | Part nr. | Description | Add info. | Qty. |
---|---|---|---|---|
1 | 07119913466 | Hex bolt M6x16 | 2 | |
07119913499 | Hex bolt M6x28 | 2 | ||
2 | 07119932099 | Waver washer B6 | 1 | |
3 | 11411252226 | Wire strap | R50/5 - R100 | 1 |
4 | 11411337509 | Perforated plate | R50/5 - R100R | 1 |
5 | 11411252223 | Oil pump screen | R50/5 - R100 <09-1980 | 1 |
6 | 11410552280 | Gasket | R75/5 - R90S | 2 |
11411265258 | Gasket | R60/7 - R100R | 2 | |
7 | 11411262971 | Flange | R60/6 - R90S | 1 |
11411265590 | Flange | R60/7 - R100S <09-1980 | 1 | |
8 | 07119951414 | Woodruff key 2.5x3.7 | R50/5 - R75/5 | 1 |
07119951440 | Woodruff key 3x5 | R50/5 - R90S | 1 | |
9 | 11411253294 | Rotor inner, key 2.5x3.7 | R50/5 - R75/5 | 1 |
11411258971 | Rotor inner, key 3x5 | R50/5 - R100RS <09-1978 | 1 | |
11411335194 | Rotor inner, w/o key | /7 >09-1978 | 1 | |
10 | 11411253293 | Rotor outer | R50/5 - R100RS | 1 |
11 | 11411335895 | O-ring | R50/5 - R100R | 1 |
12 | 11411260182 | Oil pump cover | R50/5 - R100RS <09-1980 | 1 |
13 | 07119913464 | Hex bolt M6x16 | 4 |
