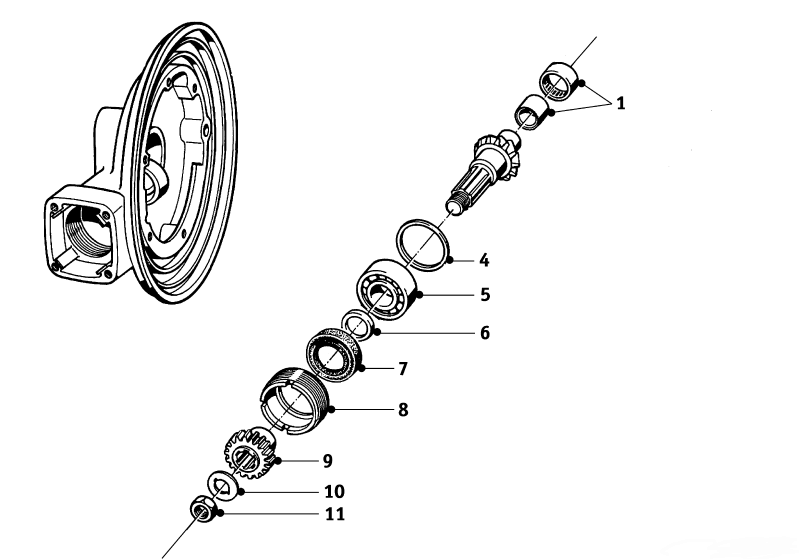

No. | Part nr. | Description | Add info. | Qty. |
---|---|---|---|---|
1 | 33123038244 | Needle bearing | R50, R69 | 1 |
33123038245 | Needle bearing | 1 | ||
4 | 331212311xx | Spacer washer | 0.20 mm - 1.00 mm | 1 |
x | 33121231195.Y/Z | Shim | 0.10 mm - 0.25 mm | |
5 | 07119982468 | Tapered bearing | 3304 | 1 |
6 | 33123038248 | Shim | 1 | |
7 | 33123038257 | Seal | 28x47x10 | 1 |
8 | 33123038252 | Threaded ring | 1 | |
M506a | Tool for threaded ring | 1 | ||
9 | 33123038260 | Coupling hub | 1 | |
10 | 33123038264 | Lock plate | 1 | |
11 | 07119921630 | Hex nut | M14x1.5 | 1 |
