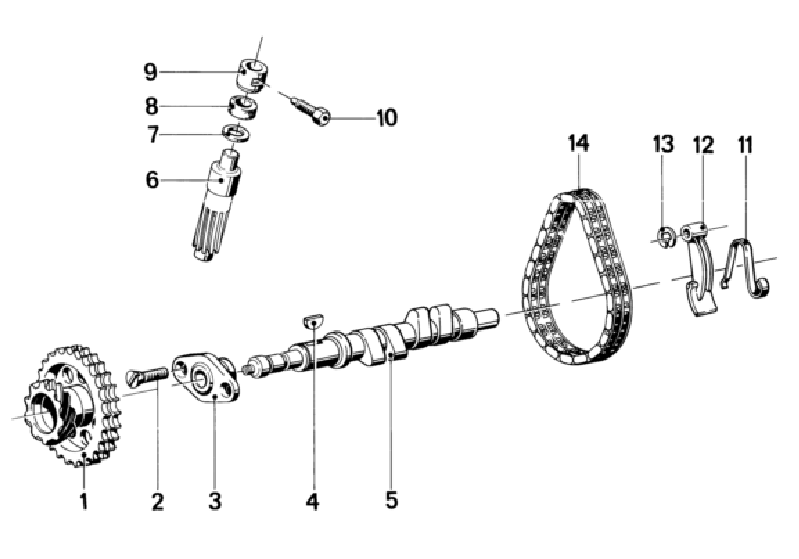

No. |
Part nr. |
Description |
Add info. |
Qty. |
1 |
11311250253 |
Camshaft sprocket |
R50/5 - R100 <09-1979 |
1 |
|
11311337107 |
Hex bolt SW12 |
R50/5 - R100 |
2 |
2 |
07119900869 |
Countersunk screw M8x20 |
R50/5 - R90S |
2 |
3 |
11311250251 |
Flange |
R50/5 - R100R |
1 |
4 |
07119951480 |
Woodruff key 5x6.5 |
|
1 |
x |
11411335194 |
Inner rotor |
>09-1978 |
1 |
5 |
11311259217 |
Camshaft 284° - 2 mm woodruff key |
|
1 |
|
11311259262 |
Camshaft 284° |
|
1 |
|
11311262999 |
Camshaft 284° - 20 mm taper |
|
1 |
|
11311250247 |
Camshaft 308° - 2 mm woodruff key |
|
1 |
|
11311259264 |
Camshaft 308° - 12 mm taper |
|
1 |
|
11311259264.S |
Camshaft 320° - 12 mm taper |
|
1 |
|
11311259264.V |
Camshaft 332° - 12 mm taper |
|
1 |
|
11311258053 |
Camshaft 336° - 12 mm taper |
|
1 |
|
11311263001 |
Camshaft 308° - 20 mm taper |
|
1 |
|
11311263001.S |
Camshaft 320° - 20 mm taper |
|
1 |
|
11311263001.T |
Camshaft 324° - 20 mm taper |
|
1 |
|
11311263001.V |
Camshaft 332° - 20 mm taper |
|
1 |
|
11311263412 |
Camshaft 336° - 20 mm taper |
|
1 |
|
11311263001.X |
Camshaft 344° - 20 mm taper |
|
1 |
|
11311337843 |
Camshaft 336° - contact breaker pin |
|
1 |
6 |
11311250187 |
Helical gear wheel |
R50/5 - R100RS <1977 |
1 |
7 |
11311256928 |
Washer |
|
1 |
8 |
11311256860 |
Seal 7x16x7 |
R50/5 - R100RS <1977 |
1 |
9 |
11311250186 |
Bush |
R50/5 - R100 |
1 |
10 |
07119911218 |
Bolt M6x15 |
|
1 |
11 |
11311253188 |
Spring |
R50/5 - R100 |
1 |
12 |
11311265455 |
Chain tensioner |
R50/5 - R100 <09-1978 |
1 |
13 |
07119932841 |
Circlip D=6mm |
|
1 |
14 |
11311250258 |
Timing chain 3/8 x 7/32 Duplex |
R50/5 - R100RS |
1 |
|
11311250258.7 |
Master link for timing chain |
|
1 |
