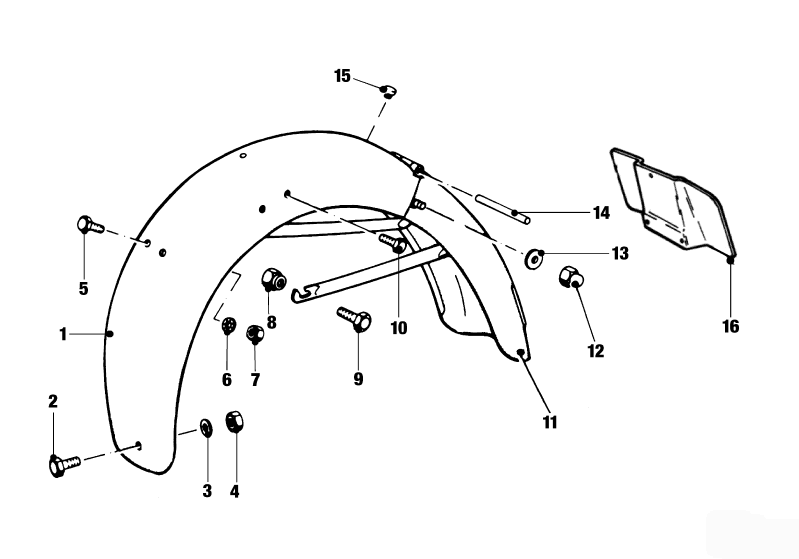

| No. | Part nr. | Description | Add info. | Qty. |
|---|---|---|---|---|
| 1 | 46620035300 | Rear fender | black with pinstriping | 1` |
| 46620035299 | Rear fender | primered | 1 | |
| 2 | 07119910342 | Hex bolt | M8x1x12 | 1 |
| 3 | 07119936205 | Serrated washer | J8.4 | 1 |
| 4 | 07119921606 | Hex nut | M8x1 | 1 |
| 5 | 07119913445 | Hex screw | M6x12 | 2 |
| 6 | 07119936135 | Serrated washer | J6.4 | 2 |
| 7 | 07119922059 | Hex nut | M6 | 2 |
| 8 | 46625096122 | Stepped nut | M8, SW14 | 2 |
| 9 | 07119912477 | Hex bolt | M8x35 | 2 |
| 10 | 07119913445 | Hex screw | M6x12 | 4 |
| 11 | 46625096277 | Rear fender, rear section | 1 | |
| 12 | 46625096152 | Cap nut | M8 | 2 |
| 13 | 07119931065 | Washer | Ø 8.4 mm | 2 |
| 14 | 46625096118 | Hinge pin | 1 | |
| 46625096034 | Hinge for rear fender (3 lips) | 1 | ||
| 15 | 61715096154 | Plug | 4 | |
| 16 | 46625096178 | Retaining plate for license plate | 1 | |
| x | 51145096146 | Emblem R50S | 1 | |
| x | 51145096147 | Emblem R69S | 1 | |
| x | 51185076731 | Rubber washer for emblem | 2 | |
| x | 07129926304 | Spring nut for emblem | 2 |
