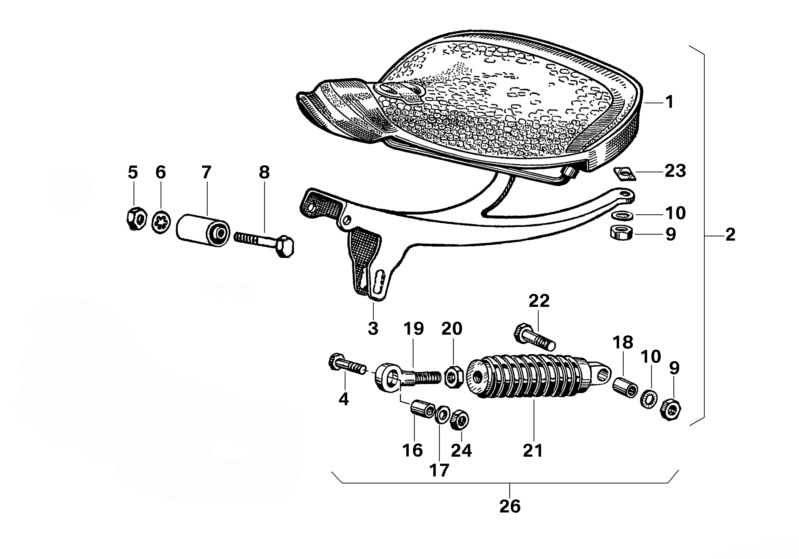

| No. | Part nr. | Description | Add info. | Qty. |
|---|---|---|---|---|
| 1 | 52517002004 | Saddle deck Pagusa / Denfeld | without frame | 1 |
| 52517002009 | Saddle deck Pagusa, | with frame | 1 | |
| 2 | 52517002009.F | Saddle, frame & chrome spring | 10 mm bolt | 1 |
| 3 | 52517002116 | Saddle Y-frame | 10 mm bolt | 1 |
| x | 2517002009.A | Z-bracket | 1 | |
| 4 | 07119914053 | Hex bolt | M8x1x30 | 1 |
| 5 | 07119922121 | Hex nut | M10x1 | 1 |
| 6 | 07119936226 | Serrated washer | J10.5 | 1 |
| 7 | 52517002141 | Silent block | 10 mm | 1 |
| 8 | 07119914364 | Hex bolt | M10x1x68 | 1 |
| 9 | 07119922094 | Hex nut | M8x1 | 1 |
| 10 | 07119932090 | Wave washer | B8 | 1 |
| 16 | 52517002123 | Spacer bushing | 1 | |
| 17 | 07119932090 | Wave washer | B8 | 1 |
| 18 | 52517002124 | Spacer bushing | 1 | |
| 19 | 52517002137 | Ring bolt | 1 | |
| 20 | 07119921616 | Hex nut | M10x1 | 1 |
| 21 | 52517002102 | Seat spring | 1 | |
| 22 | 07119914070 | Hex bolt | M8x1x45 | 1 |
| 24 | 07119922093 | Hex nut | M8x1 | 1 |
| 26 | Seat spring assembly | 1 |
