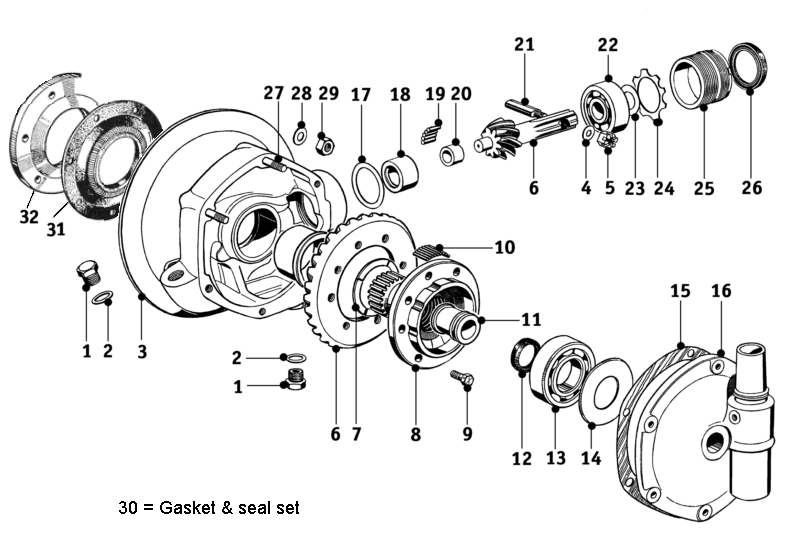

No. Part nr. Description Add info. Qty.
1 11130007163 Plug screw with magnet M14x1.5 2
11130007104 Plug screw M14x1.5 2
2 07119963242 Seal ring 2
3 33113004302 Final drive housing R51/2 1
33113004301 Final drive housing R51/3 - R68 1
4 07119931067 Washer 8.4 Ø 1
5 07119923240 Crown nut M8x1 1
07119945115 Split pin 2x20 1
6 33120018044 Bevel gear set 35:9 solo R51/2 - R68 1
33123010152 Bevel gear set 35:8 sidecar R67/2 1
33123010154 Bevel gear set 32:7 sidecar R51/2, R51/3, R67/3, R68 1
33123010156 Bevel gear set 32:9 solo R67/2, R67/3 1
7 33103004321 Pressure ring 1
8 33120026232 Driving dog 1
9 33113004150 Hex bolt 8
10 33120034190 Needles 44
x 33113004382 Bearing bushing for needle bearing 1
11 33123004357 Spacer sleeve 1
12 33113004355 Felt ring 1
13 07119981242 Roller bearing 1
14 33413004362 Shim (primary) 1
x 33413004363 Shim (secondary) 1
15 33113004360 Gasket 1
16 33113004314 Final drive housing cover 1
17 331212311xx Shim 0.20 mm - 1.00 mm 1
18-20 33123038298 Needle bearing set 1
19 33103038296 Bearing needle 28
21 33113038288 Locking pin tapered 1
22 07119982468 Taper bearing 3304 1
23 33113038290 Shim 1
24 33113038286 Pressure ring 1
25 33123038280 Threaded ring R51/2 1
33113038195 Gasket ring set - cork R51/2 1
33123038281 Threaded ring R51/3 - R68 1
33113038196 Gasket ring - aluminum R51/3 - R68 1
26 33213038278 Seal 34x49.3x9.5 mm 1
27 33113004323 Stud M8x1/1.25x20 6
28 07119931067 Washer 8.4 Ø 6
29 07119922096 Hex nut M8x1 6
30 33000008421 Gasket & seal set 1
31 26113004370 Rubber seal for driving dog 1
32 26113004373 Seal cover R51/3 - R68 1
x 07119919428 Cyl. head screw for seal cover M5x18 7
x 36314038133 Grease nipple M6x0.75 1
Tools:
M506a Tool for threaded ring
B5042V504 Backlash measurement tool
Other:
33113004301.LC Final drive overhaul
80W90 GL4 Transmission oil Millers
07559056992 Staburag spline grease NBU 30 PTM 50 gr.
