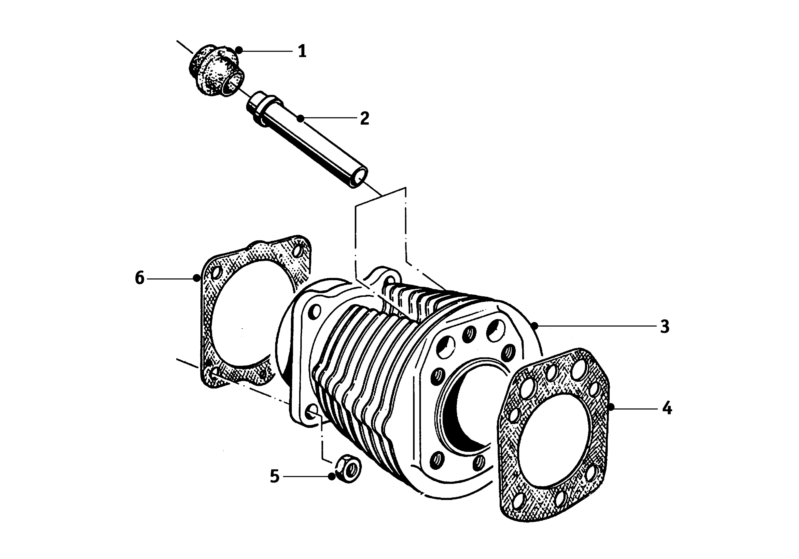

No. | Part nr. | Description | Add info. | Qty. |
---|---|---|---|---|
1 | 11110033164 | Rubber grommet | R51/2 | 4 |
11110033163 | Rubber grommet | R51/3 - R68 | 4 | |
2 | 11110010150 | Push rod tube | R51/2 | |
11110010165 | Push rod tube | R51/3 | 4 | |
11110010152 | Push rod tube | R67, R67/2, R67/3 | 4 | |
11110010153 | Push rod tube | R68 | 4 | |
X | 11110010027.R | Oil tube 7 mm | R51/3 | 2 |
11110010031.R | Oil tube 7 mm | R67 - R67/3 | 2 | |
3 | 11110010025 | Cylinder | R51/2 | 2 |
11110010027 | Cylinder | R51/3 | 2 | |
11110010031 | Cylinder | R67 | 2 | |
11110010035 | Cylinder | R68 | 2 | |
4 | 11120021148 | Cylinder head gasket | R51/2 | 2 |
11120022118 | Cylinder head gasket | R51/3 - R68 | 2 | |
11120022168 | Cylinder head gasket | R68 | 2 | |
5 | 11110001104.1 | Nut cylinder base | M10, 14 mm wrench | 8 |
6 | 11110010154 | Cylinder base gasket | paper R51/2 | 2 |
11110010158 | Cylinder base gasket | paper R51/3 - R67/3 | 2 | |
11110010160 | Cylinder base gasket | paper R68 | 2 | |
11110010161 | Cylinder base gasket | 0.5 - 1.0 mm Alu R68 | 2 | |
11110010163 | Cylinder base gasket | 1.5 mm Alu R68 | 2 |
