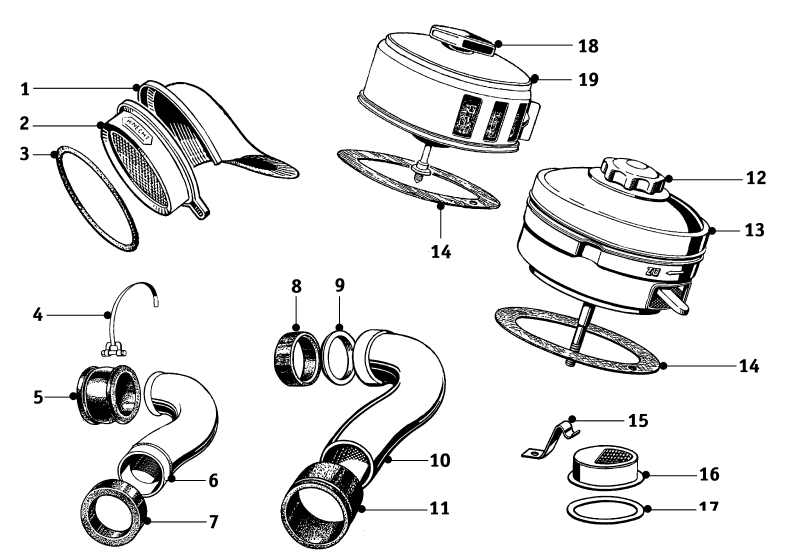

No. | Part nr. | Description | Add info. | Qty. |
---|---|---|---|---|
1 | 11610043120 | Protective cover | R51/2 | 1 |
23111006228 | Clamping spring | R51/2 | 2 | |
2 | 11610043025 | Air filter with throttle | R51/2 | 1 |
3 | 11610043117 | Gasket ring | R51/2 | 1 |
4 | 13110043103 | Tube clamp, old | R51/2 - R67/3 | 4 |
5 | 11610042162 | Rubber sleeve | R51/2 - R67/3 | 2 |
6 | 11610043124 | Air pipe, left | R51/2 - R51/3 | 1 |
11610043125 | Air pipe, right | R51/2 - R51/3 | 1 | |
11610043128 | Air pipe, left | R67 - R67/3 | 1 | |
11610043129 | Air pipe, right | R67 - R67/3 | 1 | |
7 | 11610042164 | Rubber gasket | R51/2 - R67/3 | 2 |
8 | 11610043162 | Rubber gasket | R68 | 2 |
9 | 11610043166 | Stop ring | R68 | 2 |
10 | 11610043132 | Air pipe, left | R68 | 1 |
11610043133 | Air pipe, right | R68 | 1 | |
11 | 11610043164 | Rubber gasket | R68 | 2 |
12 | 13720043148 | Attaching screw | R51/3 - R68 | 1 |
13 | 13720043031 | Airfilter Knecht | R51/3 - R68 | 1 |
14 | 13720043118 | Cork gasket | R51/3 - R68 | 1 |
15 | 11150043136 | Clamping spring | R51/3 - R68 | 1 |
16 | 11150043140 | Filter insert | R51/3 - R68 | 1 |
17 | 07119963493 | Gasket ring | R51/3 - R68 | 1 |
18 | x | Attaching screw | R51/3 -R67/2 | 1 |
19 | x | Airfilter | R51/3 -R67/2 | 1 |
