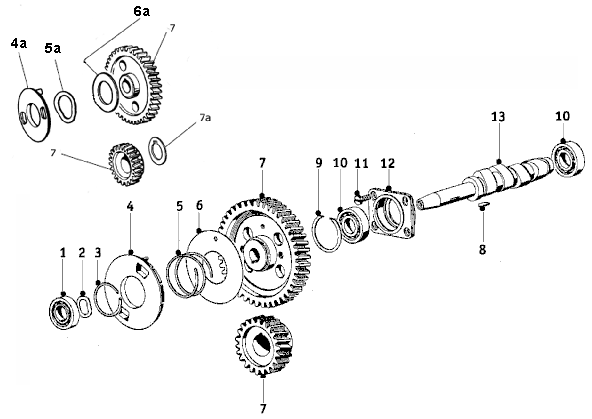

No. | Part nr. | Description | Add info. | Qty. |
---|---|---|---|---|
1 | 07119981041 | Ball bearing 6003 | R68 | 1 |
2 | 11310031172 | Wave washer | R68 | 1 |
3 | 07119933451 | Snap ring 35mm | R51/3 - R68 | 1 |
4 | 11150031168 | Breather plate - 1 pin | R51/3 - R68 | 1 |
5 | 11150031152 | Spring | R51/3 - R68 | 1 |
6 | 11150031164 | Cover plate | R51/3 - R68 | 1 |
4a | 11150031171 | Breather plate - 2 cast pins | alternative | 1 |
5a | 11310031707 | Wave spring | alternative | 1 |
6a | 23211231658 | Shim 1.0 mm | alternative | 1 |
Set 4a, 5a, 6a replaces 3, 4, 5 and 6 | ||||
7 | 11310016390-99 | Gear set from +1 to +10 | 30° - R51/3 - R68 | 1 |
11310016380-89 | Gear set from +0 to -9 | 30° - R51/3 - R68 | 1 | |
7a | 11310016400 | Shim 1.5 mm | R51/3 - R68 | 1 |
Gear sets nr. 7 always in combination with 4a, 5a, 6a and 7a | ||||
8 | 07119951461 | Woodruff key | R51/3 - R68 | 1 |
9 | 11310030102 | Spring washer | R51/3 - R68 | 1 |
10 | 07119981213 | Roller bearing 6203 | R51/3 - R68 | 2 |
11 | 11300030104 | Screw | R51/3 - R68 | 4 |
12 | 11310030150 | Bearing holder | R51/3 - R68 | 1 |
13 | 11310031027 | Camshaft | R51/3 - R67/3 | 1 |
11310031029 | Camshaft | R68 | 1 |
