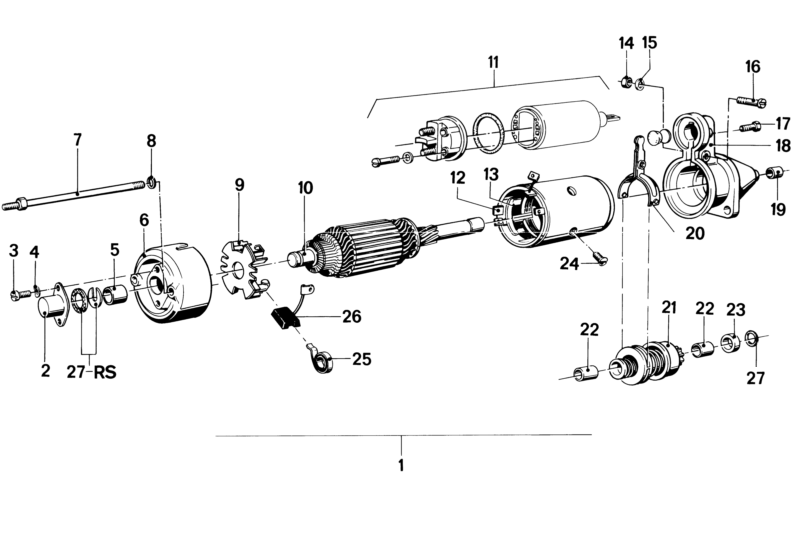

No. | Part nr. | Description | Add info. | Qty. |
---|---|---|---|---|
1 | 12411357500 | Starter - Valeo | 8 teeth <09-1974 | 1 |
12411357500AM | Starter, after-market | 1 | ||
2 | 11141255793 | Cap | 1 | |
3 | 07119919367 | Fillester head screw M4x8 | 2 | |
4 | 07119932100 | Wave washer B4 | 2 | |
5 | ||||
6 | 12411352534 | Collector guiding | 1 | |
7 | 12411352538 | Fillester head screw | 2 | |
8 | 07119931033 | Washer Ø 5.2 mm | 2 | |
9 | 12411352535 | Brush holder plate | 1 | |
10 | 12411352530 | Armature | 1 | |
11 | 12411352540 | Solenoid switch | 1 | |
12 | 12411352525 | Insulating | 1 | |
13 | 12411352524 | Exciter winding | 1 | |
14 | 07119921054 | Hex nut M6 | 1 | |
15 | 07119932090 | Wave washer B8 | 1 | |
16 | 12411352529 | Fillester head screw | 1 | |
17 | 12418620158 | Countersunk screw | 1 | |
18 | ||||
19 | 12411352527 | Bush bearing | 1 | |
20 | 12411352528 | Shift lever | 1 | |
21 | 12411352532 | Starter pinion | 1 | |
22 | 12411352533 | Bush bearing | 2 | |
23 | 12411722915 | Ring | 1 | |
24 | 07119900147 | Countersunk screw M8x10 | 4 | |
25 | 12411352537 | Compression spring | 4 | |
26 | 12411352536 | Carbon brush set | 1 | |
27 | 12411352541 | Repair kit starter motor | 1 |
