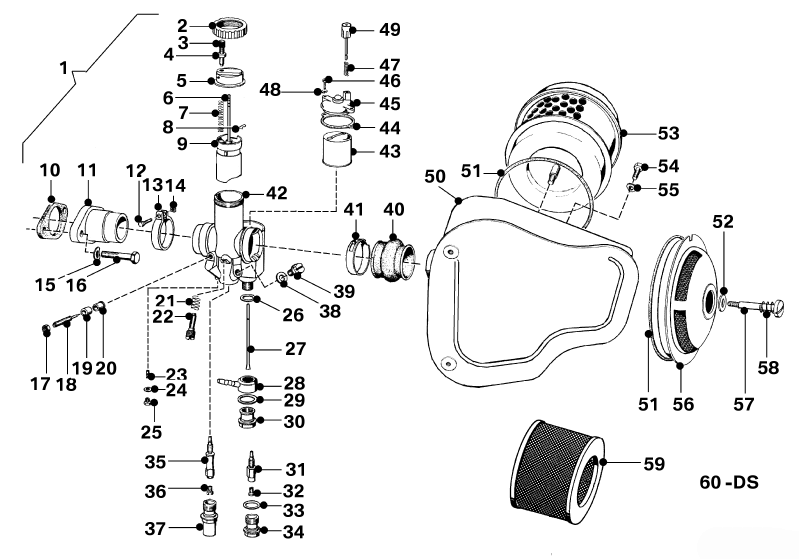

| No. |
Part nr. |
Description |
Add info. |
Qty. |
| 1 |
13110039008 |
Bing carburetor 1/26/46 |
R26 |
1 |
|
|
Bing carburetor 1/26/52 |
R26 |
1 |
|
|
Bing carburetor 1/26/55 |
R26 |
1 |
|
|
Bing carburetor 1/26/68 |
R27 |
1 |
|
|
Bing carburetor 1/26/79 |
R27 >378 895 |
1 |
|
|
Bing carburetor 1/26/83 |
R27 |
1 |
|
13110039005 |
Bing carburetor 1/26/93 |
R27 |
1 |
|
13110039005.B |
Bing carburetor 1/26/93 with acc. pump |
R27 |
1 |
|
13111259265 |
Bing carburetor (R60/6 type) 1/26/123 |
|
1 |
| 2 |
13110039216 |
Cover ring |
Bing 21-542 |
1 |
| 3 |
13110039178 |
Cable adjusting screw, 25 mm |
Bing 50-050 |
1 |
|
13110039179 |
Cable adjusting screw, 19.5 mm |
Bing 50-048 |
1 |
| x |
13110042111 |
Rubber boot |
|
1 |
| 4 |
13110039182 |
Hex nut |
Bing 42-605 |
1 |
| 5 |
13110039222 |
Cover plate |
R26 |
1 |
|
13110039113 |
Cover plate |
R27 |
1 |
| 6 |
13110039274 |
Needle-46 |
Bing 46-255 |
1 |
| 7 |
13110039167 |
Spring |
Bing 60-195 |
1 |
| 8 |
13110039176 |
Retaining clip |
Bing 61-375 |
1 |
| 9 |
13110039226 |
Carburetor slide |
Bing 22-540 |
1 |
| 10 |
13110042145 |
Gasket |
|
1 |
| 11 |
13110039103 |
Flange joint |
|
1 |
| 12 |
13110039247 |
Clamping screw |
|
1 |
| 13 |
13110039230 |
Clamping ring |
|
1 |
| 14 |
13110039284 |
Nut |
Bing 42-611 |
1 |
| 15 |
07119932090 |
Wave washer |
B8 |
2 |
| 16 |
07119912477 |
Hex bolt |
M8x35 |
2 |
| 17 |
13110039184 |
Jam nut |
Bing 42-702 |
1 |
| 18 |
13110039180 |
Idle mix screw (short) |
Bing 50-016 |
1 |
|
13110039181 |
Idle mix screw (long) |
Bing 50-920 |
1 |
| 19 |
13110039185 |
Idle mix screw cap |
Bing 57-560 |
1 |
| 20 |
13110039183 |
Idle mix screw sleeve |
Bing 50-520 |
1 |
| 21 |
13110039171 |
Spring |
Bing 60-282 |
1 |
| 22 |
13110039282 |
Stop screw |
Bing 50-080 |
1 |
|
13110039123.6 |
Repair threaded bush |
|
|
| 23 |
13111254915 |
Idle jet - 30 |
for BING 1/26/113 |
1 |
|
13110039137 |
Idle jet - 35 |
Bing 44-031 |
1 |
| 24 |
13110042126 |
Gasket ring |
Bing 65-102 |
1 |
| 25 |
13110039196 |
Screw plug |
Bing 140-706, M7x0.65 |
1 |
| 26 |
13110042120 |
Gasket ring |
|
1 |
| 27 |
13110039188 |
Float needle |
Bing 47-960 |
1 |
| 28 |
13110039191 |
Fuel hose connection |
|
1 |
| 29 |
13110042122 |
Gasket ring |
|
1 |
| 30 |
13110039192 |
Screw plug |
Bing 50-225 |
1 |
| 31 |
13110039224 |
Needle jet |
1408 |
1 |
|
13110039123.6 |
Repair threaded bush |
|
|
| 32 |
13110039245 |
Main jet - 115 |
Bing 44-051, R27 |
1 |
|
13110039241 |
Main jet - 120 |
Bing 44-051, R26, R27 |
1 |
|
13110039292 |
Main jet - 125 |
Bing 44-031, R27 |
1 |
| 33 |
13110042130 |
Gasket ring |
|
1 |
| 34 |
13110039197 |
Screw plug |
Bing 50-250, M15x1 |
1 |
| 35 |
13110039290 |
Accelerator pump |
Bing 45-522-101, R27 |
1 |
| 36 |
13110039292 |
Main jet - 125 |
Bing 44-031, R27 |
1 |
| 37 |
13110039291 |
Screw plug |
R27 |
1 |
| 38 |
13110042148 |
Gasket ring |
|
1 |
| 39 |
13110039299 |
Plug screw |
Bing 50-135 |
1 |
| 40 |
13720042161 |
Rubber sleeve |
|
1 |
| 41 |
13110043103 |
Hose clamp |
|
2 |
|
11611460940 |
Hose clamp |
Norma 46 mm |
2 |
| 42 |
13110039100 |
Carburetor housing |
R27 |
1 |
| 43 |
13110039186 |
Float 11 gr. (1/26/46-52-79-83-93) |
Bing 35-073 |
1 |
|
13110039187 |
Float 7 gr. (1/26/55-68) |
Bing 35-072 |
1 |
| 44 |
13110042150 |
Gasket |
Bing 165-540 |
1 |
| 45 |
13110039158 |
Float housing cover |
Bing 32-991 |
1 |
| 46 |
13110039156 |
Screw |
Bing 40-528 |
2 |
| 47 |
13110039164 |
Tickler spring |
Bing 60-048 |
1 |
| 48 |
13110039193 |
Spring washer |
Bing 61-680 |
2 |
| 49 |
13110039161 |
Tickler |
|
1 |
|
13110039262 |
Washer for tickler |
|
1 |
| 50 |
13728042172 |
Air filter case |
|
1 |
| 51 |
13720043116 |
Gasket ring |
|
1 |
| 52 |
13720010293 |
Rubber washer |
|
1 |
| 53 |
13720043002 |
Air filter |
R27 |
1 |
| 54 |
07119913445 |
Hex head screw |
M6x12 |
2 |
| 55 |
07119932072 |
Wave washer |
B6 |
2 |
| 56 |
13720043007 |
Wet air filter |
R26 |
1 |
| 57 |
13720043147 |
Air filter screw (long) |
R27 |
1 |
|
13720043149 |
Air filter screw (short) |
R26 |
1 |
| 58 |
13720043001 |
Spring |
|
1 |
| 59 |
13721250391 |
Air filter element LX191 |
|
1 |
| 60 |
13115590038 |
Gasket set |
|
1 |
