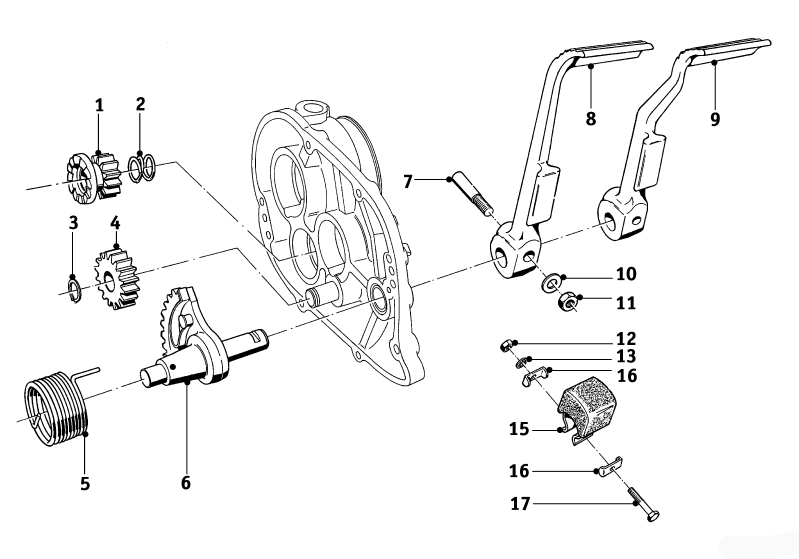

| No. | Part nr. | Description | Add info. | Qty. |
|---|---|---|---|---|
| x | 23000008424 | Gasket & seal set | 1 | |
| 1 | 23221056104 | Gear wheel | 1 | |
| 2 | 23511056116 | Spring | 1 | |
| 3 | 07119934080 | Circlip | 15x1 | 1 |
| 4 | 23221056108 | Idler gear | 1 | |
| 5 | 23511056112 | Spring | 1 | |
| 6 | 23511056274 | Gear segment | 1 | |
| 7 | 23511056124 | Locking screw | 1 | |
| 8 | 23511056120 | Kickstarter lever | for 6V system | 1 |
| 9 | 23511056122 | Kickstarter lever | for 12V system | 1 |
| 10 | 07119931065 | Washer | Ø 8,4 | 1 |
| 11 | 07119922081 | Hex nut | M8 | 1 |
| 12-17 | 23514034256 | Kickstart lever stop, complete set | 1 | |
| 12 | 07119922038 | Hex nut | M5 | 1 |
| 13 | 07119936110 | Serrated washer | J5.3 | 1 |
| 15 | 23514034257 | Kickstarter stop | 1 | |
| 16 | 46514034156 | Wedge plate | 2 | |
| 17 | 07119912192 | Screw | M5x30 | 1 |
